Garage compatibility wiring instructions

Check how to install the ismartgate smart opener to your garage door opener. The ismartgate is compatible with all garage door opener brands, including the Chamberlain, Craftsman and Liftsmaster openers.

Installation for:

with a YELLOW learn button.

garage_motor_learn_button_color.fw

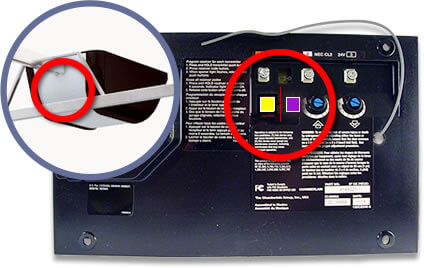

Check the color of the learn button on your garage opener (check the list).
If it's YELLOW you will need the ismartgate switch adaptor (sold separatly)

ismartgate_switch_adaptor_for_chamberlain_liftmaster_cfratsman_garage_door_openers

The ismartgate switch adaptor needs to be connected to your WALL BUTTON directly, not to the opener.

install_smart_garage_door_opener_on_your_wall_push_button

Installation for:

chamberlain_liftsmater_craftsman_smart_garage_door_installation_without_yellow_purple_learn_button

without a YELLOW learn button.

installation_garage_option_A

Install directly to the garage door opener

We recommend wiring the ismartgate directly to your Garage Door Opener if you don't have any power outlets near the push buttons.

installing_smart_garage_door_opener_into_the_garage_motor

Wiring instructions

If your garage door opener is not on the list just send us an e-mail at support@ismartgate.com indicating your operator’s brand and model.

1. Select Manufacturer:

2. Select Model:

installation_garage_option_B

Wall Push Button

We recommend wiring the ismartgateto your wall mounted push button if you have power outlets nearby (less than 30 inches / 1 meter).

install_smart_garage_door_opener_on_your_garage_wall_push_button

smart_gate_door_opener_wiring_instructions_setup

Do you have a Gate Opener?

Check the ismartgate gate compatibility wiring instructions here.
